METAL PANELS

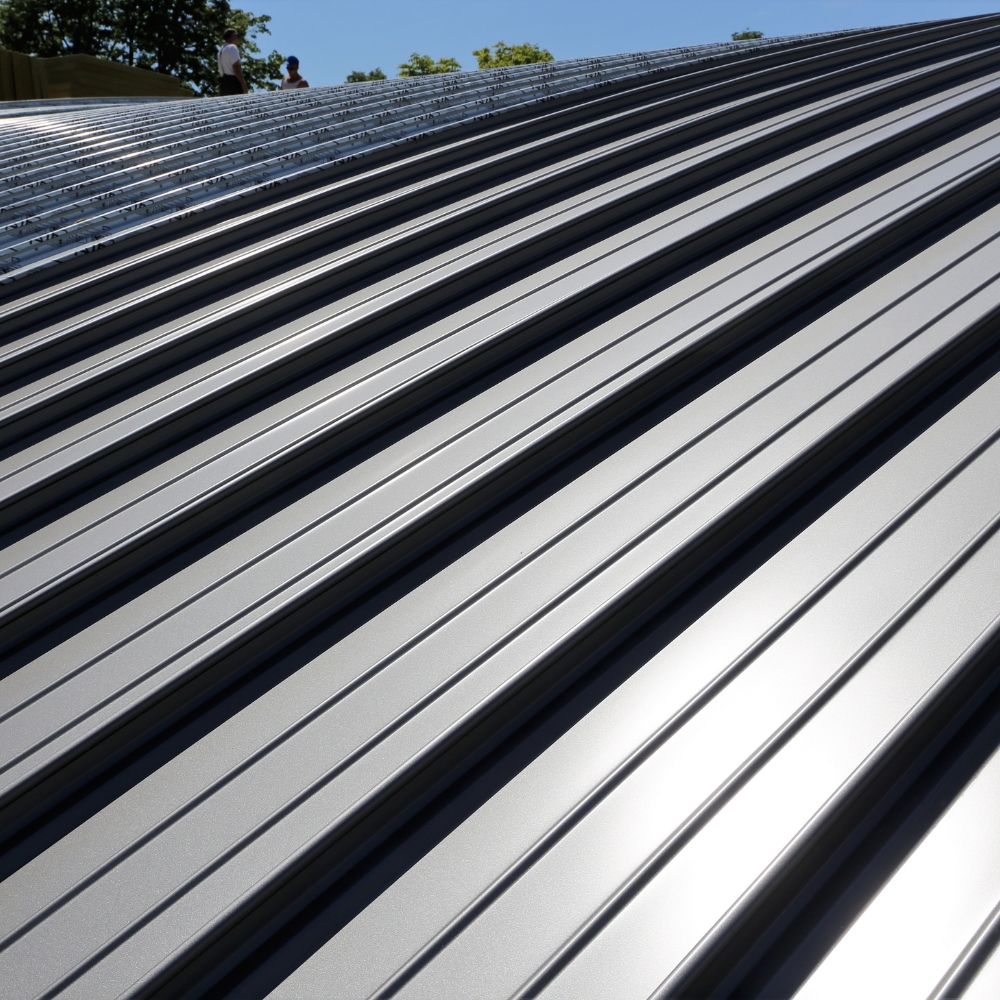

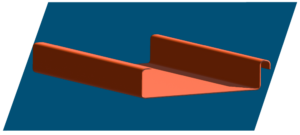

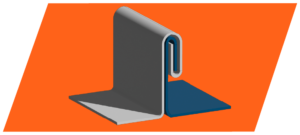

Standing Seam
Standard size: 1", 1 1/2", and 2"
Thin-rib profile
Superior weather-tight capability
Hidden fasteners
Exceptional resistance to wind uplift
Characteristics
- Attached to the roof deck with clips.
- Available expansion clip allows for thermal expansion and contraction of the panel if needed.
- Can curve to a 10 ft. convex radius (1″ and 1 1/2″)
- Can last up to 60 years (with the recommended substrate).
- Ideal for warehouse applications (2″).
- Mechanically seamed
- 1″, 1 1/2″, 2″ Nominal seam height
- 17″, 18″ Standard panel width
- Smooth, 2 ribs, or striations
- Minimum slope 2:12
- UL 580 class 90 wind uplift rated
- UL 2218 class 4 impact rated
- UL 790 class A fire rated
- UL construction #90, #180, #176, #238 A (2″)
- 24 Ga acrylic-coated Galvalume (1″, 1 1/2″)
- 22, 24 Ga acrylic-coated Galvalume (2″)
- 24 Ga Kynar 500 color finish
- 26, 24 Ga paint grip (1″, 1 1/2″)
- 24 Ga paint grip (2″)
- 16, 20 oz. Copper (1″, 1 1/2″)
- .032, .040 Aluminum, anodized or Kynar 500 color finish
- UL
- Energy Star
- Cool Roof Rating Council
Characteristics
- Attached directly to the roof deck, no clips or seamers are required.
- Can be used as a wall panel.
- Can last up to 60 years (with the recommended substrate).
- 1″ Nominal seam height
- 16″ Panel width
- Smooth, 2 ribs, or striations
- Minimum slope 3:12
- Integral slotted fastening strip
- UL 580 class 90 wind uplift rated
- UL 2218 class 4 impact rated
- UL 790 class A fire rated
- 26, 24 Ga acrylic-coated Galvalume
- 24 Ga Kynar 500 color finish
- 26, 24 Ga paint grip
- 16, 20 oz. copper
- UL
- Energy Star
- Cool Roof Rating Council

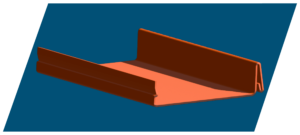

Snap Lock
Standard size: 1 1/2"
Ultra-thin rib profile
Superior weather-tight
Hidden fasteners
Exceptional resistance to wind uplift
Characteristics
- Attached to solid substrates like plywood or metal decking.
- Available expansion clip allows for thermal expansion and contraction of the panel if needed.
- One-piece clip allows for unlimited thermal movement.
- Snap together seam.
- Can last up to 60 years (with the recommended substrate).
- Clip relief available.
- Snaps together without mechanical seaming
- 1.5″ Nominal seam height
- 17″ Standard panel width
- Smooth, 2 ribs, or striations
- Minimum slope 3:12
- UL 580 class 90 wind uplift rated
- UL 2218 class 4 impact rated
- UL 790 class A fire rated
- 26, 24 Ga acrylic-coated Galvalume
- 26 Ga SMP color finish
- 24 Ga Kynar 500 color finish
- 26, 24 Ga paint grip
- UL
- Energy Star
- Cool Roof Rating Council

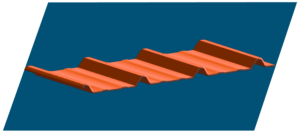

R Panel
Standard size: 36"
Use as a roof or siding
Excellent for warehouses, steel frame buildings, and carports
Exposed fasteners
Characteristics
- The purlin-bearing rib option strengthens roofs.
- Can be used for most external uses, including light commercial walls.
- Standard trim, flashing, and accessories are available
- 36″ Coverage width, 12″ center and 1 1/4“ ribs
- Extremely strong tensile steel
- Minimum slope 1:12
- UL 580 class 90 wind uplift rated
- UL 2218 class 4 impact rated
- UL 790 class A fire rated
- 26, 24 Ga acrylic-coated Galvalume
- 24 Ga SMP color finish
- 24 Ga Kynar 500 color finish
- UL
- Energy Star
- Cool Roof Rating Council

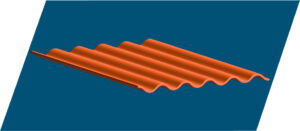

corrugated
Standard size: 32 5/8"
Use as a roof, siding, interior decorations, or soffit
Most economical metal panel
Characteristics
- Use as roof, siding, interior decorations, or soffit.
- Most economical metal panel.
- 7/8″ Rib height
- 32 5/8″ Panel coverage
- Install over open framing or a solid substrate
- Minimum slope 3:12
- UL 790 class A fire rated
- 29, 26 Ga acrylic-coated Galvalume
- 26 Ga SMP color finish
- 24 Ga Kynar 500 color finish
- UL
- Energy Star
- Cool Roof Rating Council

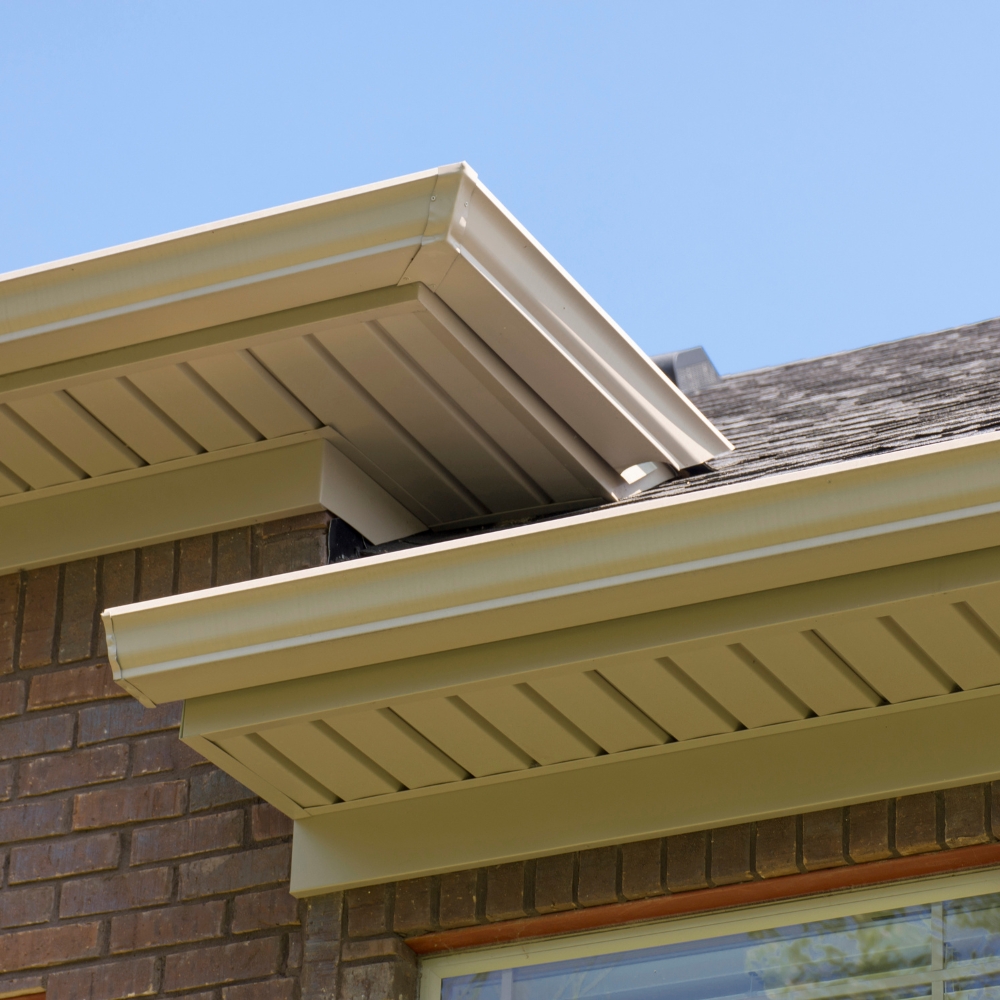

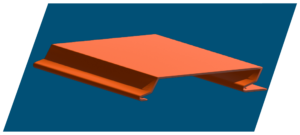

soffit
Standard size: 14"
Use as a siding, interior decoration, or soffit
Usually connects the roof overhang with the side of a building
Characteristics
- Allows vertical or horizontal installation.
- May be used as an interior panel.
- Typically installed in the eave of a building to protect the structure from weather.
- Available in different types for different building types.
- Width 14″
- Standard trim, flashing, and accessories
- Accommodates rigid or batt insulation
- Smooth, 2 ribs, or striations
- Available perforated
- UL 790 class A fire rated
- 26, 24 Ga acrylic-coated Galvalume
- 26 Ga SMP color finish
- 24 Ga Kynar 500 color finish
- UL
- Energy Star
- Cool Roof Rating Council
Versatile Applications for Every Building Type
Standing Seam
Ideal for architectural and residential roofs where aesthetics meet performance. This standing seam metal roof panel offers a clean finish, superior weather resistance, and long-term durability in varying climates.

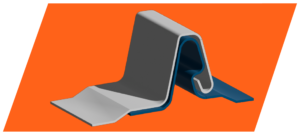

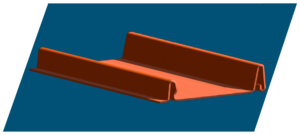

Nail Strip
Perfect for fast installations on residential or light commercial buildings. The nail strip panel attaches directly to the deck, offering a sleek design without the need for clips or mechanical seamers.
Snap Lock
Used in upscale residential and light commercial settings, snap lock panels provide hidden fasteners and snap-together seams, ensuring quick installation, thermal movement, and enhanced curb appeal.
R Panel
R Panel is commonly used in warehouses, barns, and steel roof panels structures. It offers cost-effective, high-strength coverage for metal roof panels and walls with exposed fasteners and a durable, ribbed profile.
Corrugated
This is a popular choice for agricultural buildings, modern residential facades, and accent walls. Corrugated metal roofing panels are economical, lightweight, and offer traditional style with advanced performance.
Soffit
Used to finish roof eaves or protect overhangs, soffit metal panels help ventilate attics and maintain moisture control. They’re also excellent for interior applications or aesthetic exterior transitions.
Why Choose Us for Your Metal Roofing Panels in San Antonio?
Fast Turnaround
Most metal roof panels orders are manufactured and ready for pickup or delivery within 24 hours.
Tech Support
Our team provides on-site consultations within 4 hours to ensure seamless product selection and project execution.
On-Site Manufacturing
All products are fabricated in-house for consistent quality control, precision, and rapid production in every order.
Certified Quality
Our panels meet UL, Energy Star, and Cool Roof standards for performance, safety, and energy efficiency.
applications
Metal Panel
Standing Seam
Metal Panel
nail strip
metal panel
snap lock
metal panel

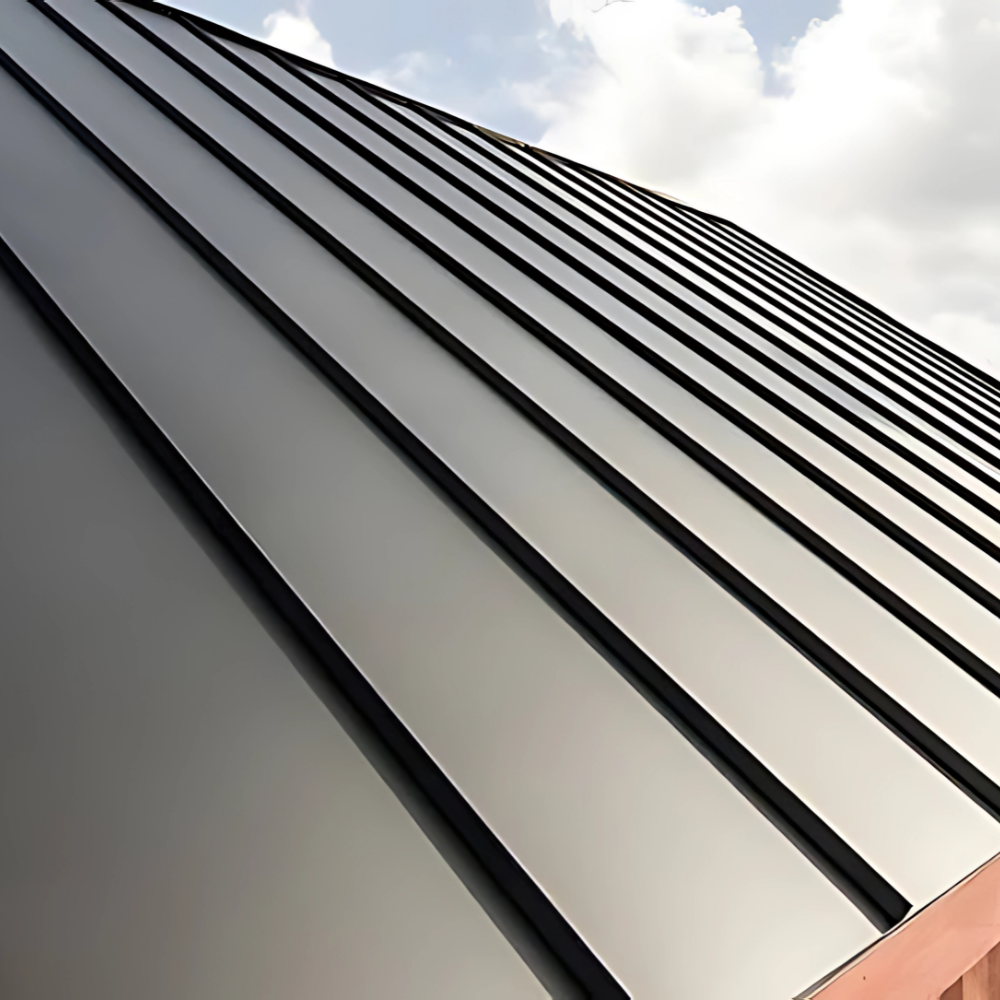

smooth panel
Metal Panel

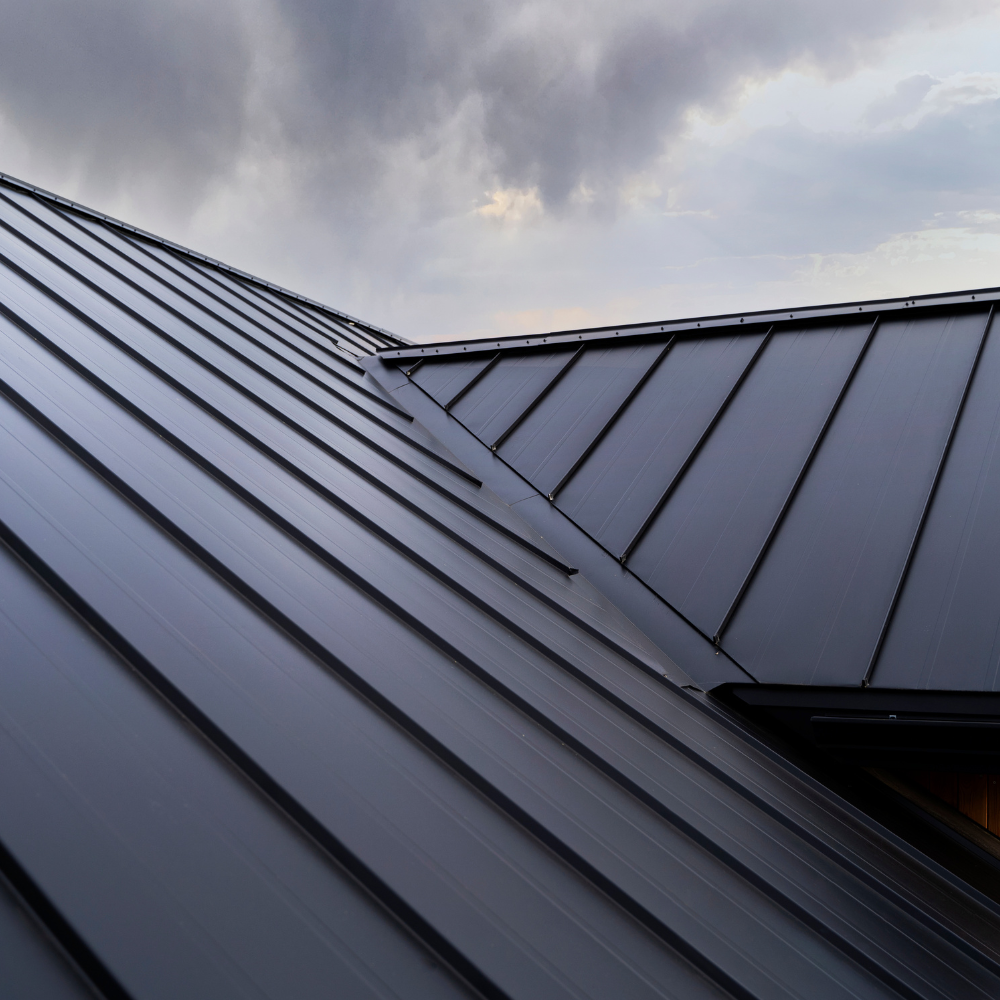

two ribs
metal panel

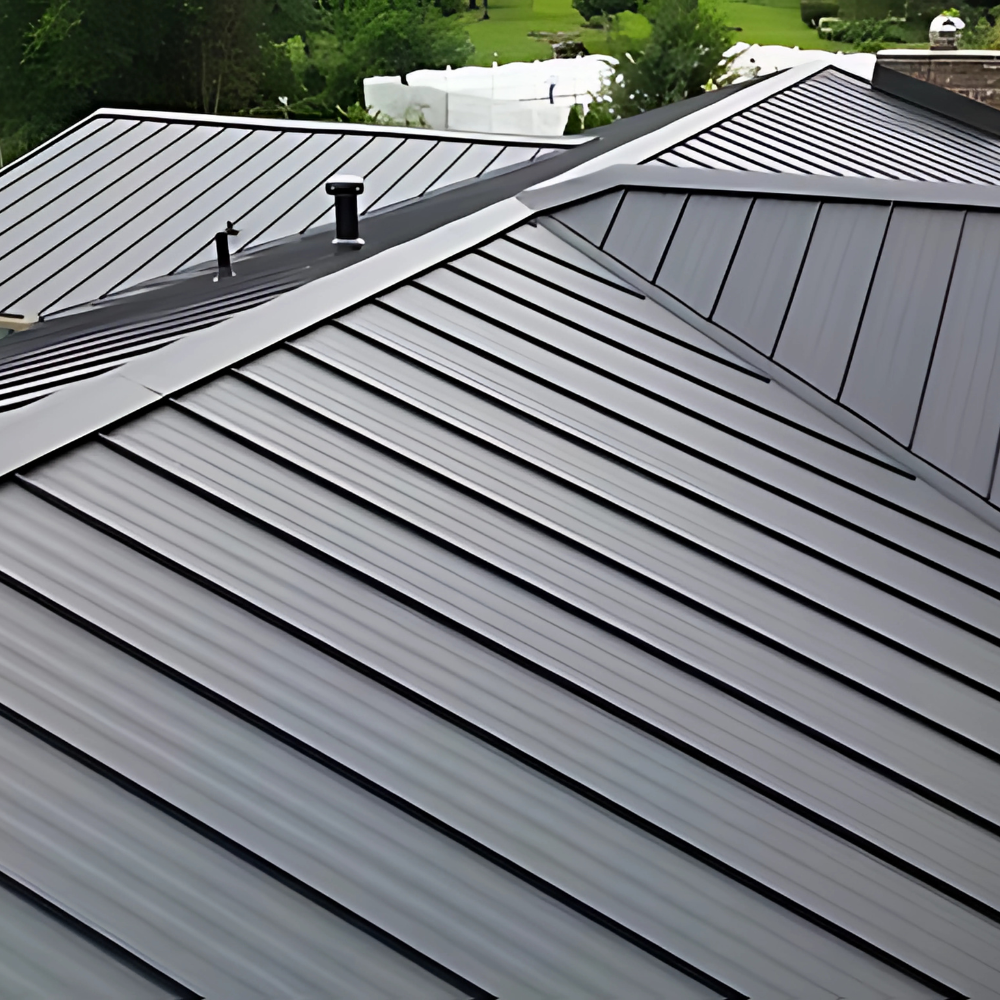

Striations
metal panel
r-panel
metal panel
corrugated
metal panel
Soffit
Customer Reviews
Frequently Asked Questions
What types of metal panels do you offer for roofing in San Antonio?
We offer standing seam metal roofs, R panels, snap lock, nail strip, soffit panels, and corrugated metal roofing, all designed for durability, energy efficiency, and superior performance in San Antonio’s climate.
How do I choose between standing seams and corrugated metal roofing panels?
Standing seam metal roofs are ideal for modern architectural builds with concealed fasteners and sleek lines. Corrugated metal panels are more affordable and better suited for barns, sheds, and utility structures.
Do your metal roofing panels meet local San Antonio building code requirements?
Yes. All our metal roofing panels in San Antonio meets or exceed local building code standards and carry UL, Energy Star, and Cool Roof Rating Council certifications for safety and performance.
Can you help with panel selection for specific building types or climates?
Definitely. Our knowledgeable team offers expert recommendations and on-site consultations to help you select the most appropriate metal panels, whether you’re building in high-heat, storm-prone, or humid San Antonio zones.
What is the lifespan of your metal roof panels?
Our metal roof panels, including standing seam and corrugated types, are built to last up to 60 years or more with proper installation, making them a long-term, low-maintenance investment for any property.
How quickly can I get metal roofing panels in San Antonio after placing an order?
Our on-site manufacturing capabilities, most orders for metal roofing panels in San Antonio are ready for pickup or delivery within 24 hours, ideal for urgent or large-scale construction timelines.
Do you offer custom sizes or finishes for steel roofing sheets?
Yes, we provide steel roofing sheets in various gauges, lengths, rib patterns, and finishes, including Galvalume®, Kynar 500, copper, and aluminum, tailored to meet your design, functional, and climate requirements.
Can I use R panel for both roofing and wall cladding?
Absolutely. R panels are widely used in commercial and industrial projects for both roofing and siding applications. They offer exposed fastener strength, excellent coverage, and strong structural performance at great value.
Are corrugated metal panels suitable for interior design projects?
Yes. Corrugated metal panels aren’t just for exterior; they’re increasingly popular in interior designs for accent walls, ceilings, and rustic features, offering a modern-industrial look with lightweight, easy-to-install versatility.
